Honda K24A3 engine - Premium Pack & Honda AST-5 Gearbox
Honda K24A3 engine - Premium Pack & Honda AST-5 Gearbox
Honda K24A3 engine was developed for the Australian and European markets. This engine is versatile and reliable with both front and mid engine vehicles.
An stl file of the engine is aligned in the global coordinate system is provided.
Multiple STL files are included in this pack. These are:

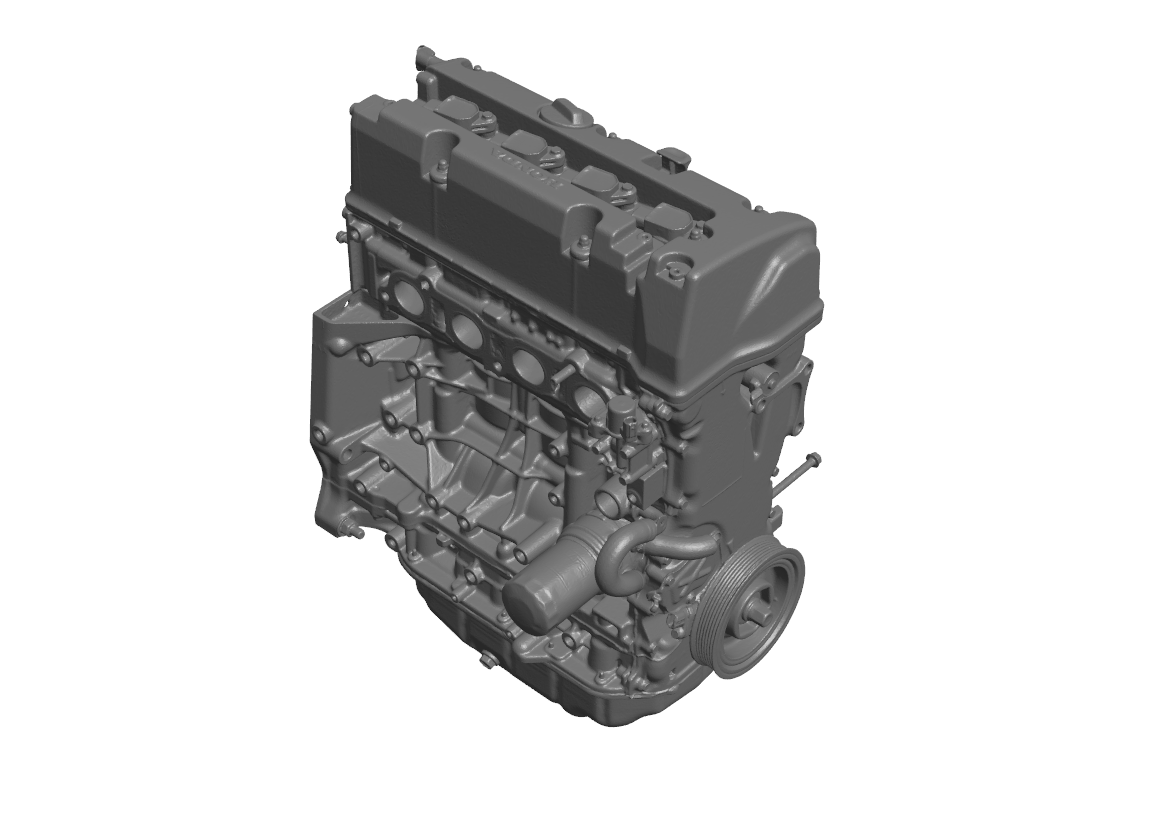

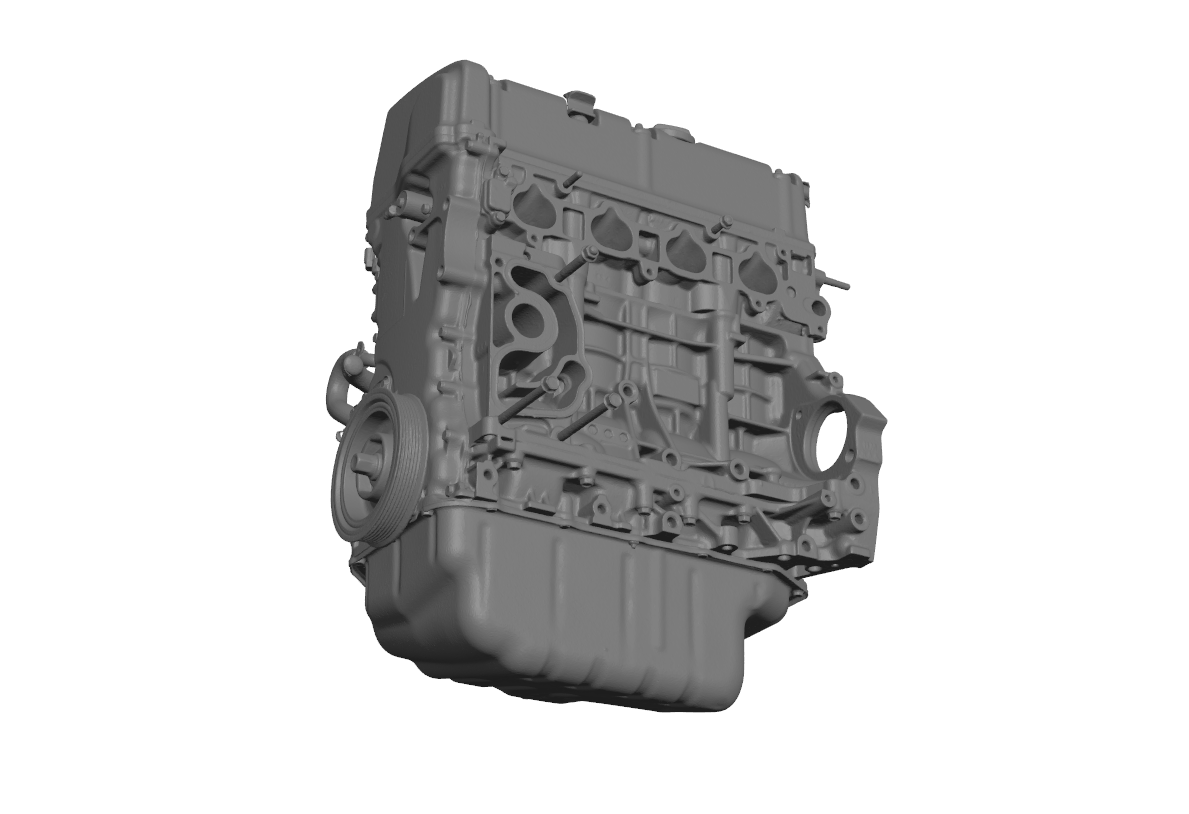

- Bare engine with sump

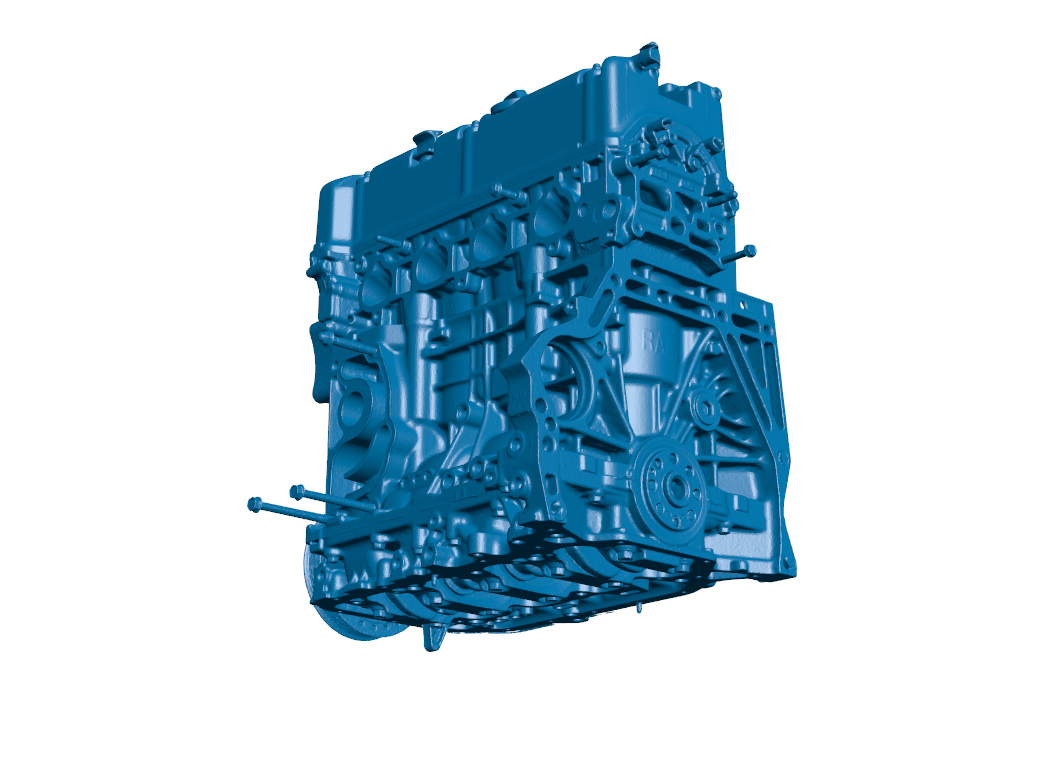

- Bare engine without sump

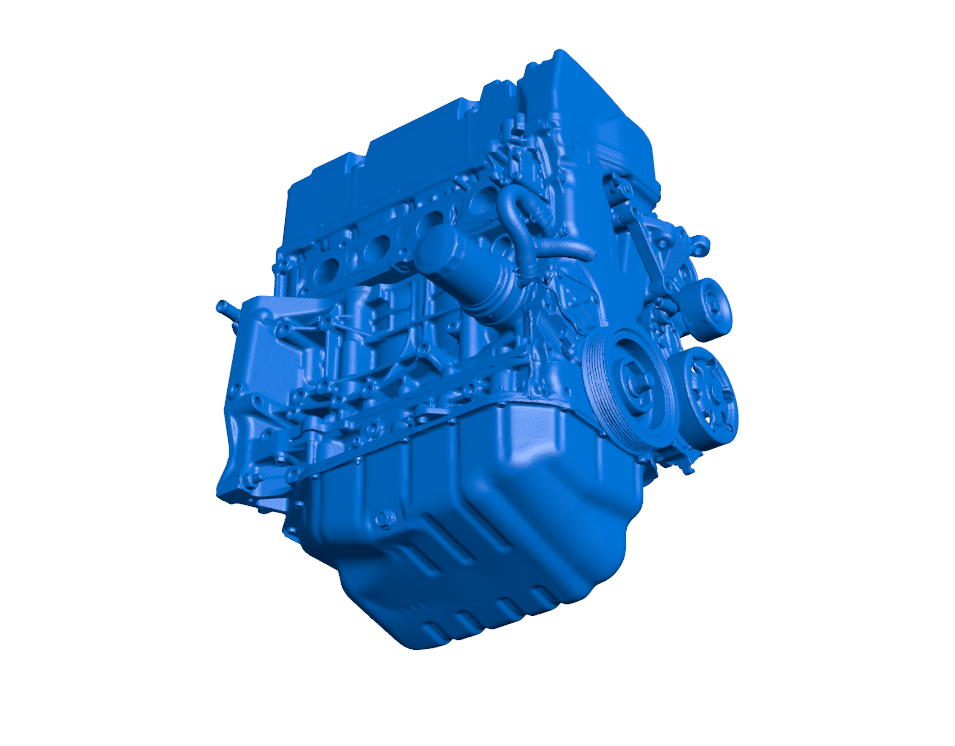

- Engine with intake and other accessories fitted
- Intake
- Water pump & additional housing
- Mount
- Top water fitting
- Honda AST-5 Gearbox (Note - gearshift counter masses have been removed)
Refer to images below for detail.
All scans is in STL format - NOT SOLID MODEL
Please download our sample to familiarize yourself with the format.
All care is taken at the time to ensure accuracy of scan. Please double check against physical part if requiring close tolerancing or if referencing part.
Please be aware that due to an issue with uploading the file to the website, automatic download is not available at this time. As a result, a separate link to the file will be sent to you via email within 24 hours of purchase. We apologize for any inconvenience this may cause. Unfortunately, this issue is currently beyond our control, but we are actively investigating a solution.
