AZ6 Gearbox with TL70 Housing for Subaru BRZ/Toyota GR86.
The AZ6 transmission is a 6-speed manual gearbox developed by Aisin, found in the Toyota Altezza and first generation Lexus IS 200. It boasts a lightweight aluminum housing, close gear ratios, and a durable design that supports high-performance applications.
The TL70 Transmission was derived from the AZ6 and designed by Toyota, Subaru, and Aisen engineers in the quest for improved shifting. It is tailored for specific vehicle models, including the Toyota 86, Subaru BRZ, and Scion FR-S. Known for its smooth shifting and optimized gear ratios, the TL70 is designed for sports car driving dynamics.
This scan is from a 2016 Australian delivered Toyota 86.
This is the base pack which includes
Scan of gearbox minus shifter mechanism
Scan of gearbox & shifter (in neutral)
Scan of gearbox & shifter (in ALL gear positions)

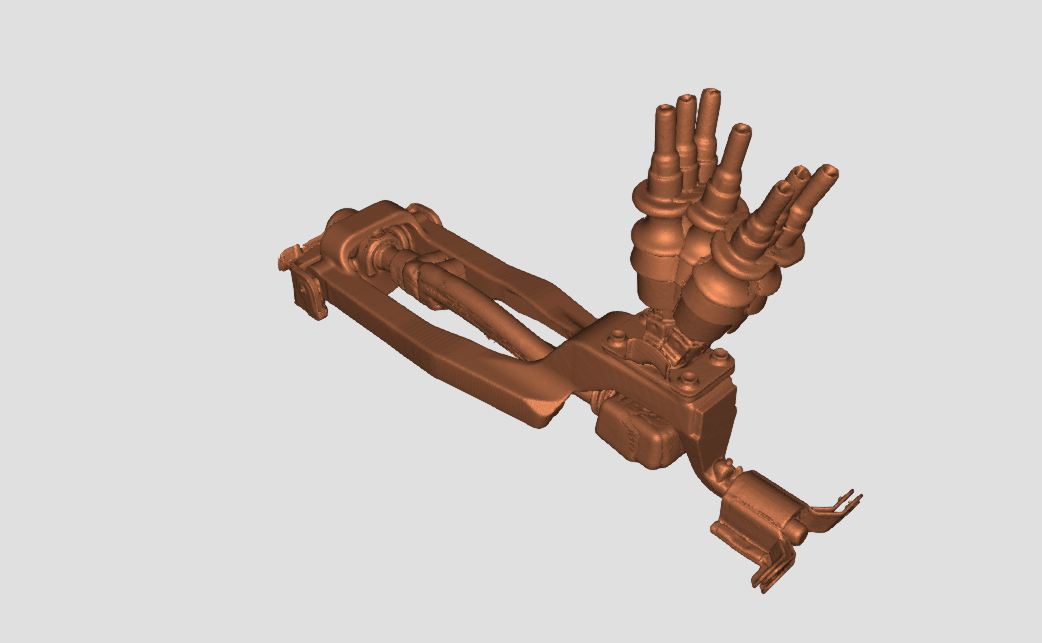

Shifter scan in ALL gear positions
All scans is in STL format - NOT SOLID MODEL
Please download our sample to familiarize yourself with the format.
All care is taken at the time to ensure accuracy of scan. Please double check against physical part if requiring close tolerancing or if referencing part.
Please be aware that due to an issue with uploading the file to the website, automatic download is not available at this time. As a result, a separate link to the file will be sent to you via email within 24 hours of purchase. We apologize for any inconvenience this may cause. Unfortunately, this issue is currently beyond our control, but we are actively investigating a solution.
